Hello, everyone, the landlord in late-stage cancer has come again, and gossip is less of a topic.
The landlord loves to watch movies, so the electric curtain is installed. In order to increase the projection distance as much as possible, the curtain is installed closer to the video wall, resulting in the screen being less than 10cm away from the wall after being lowered.
Millet TV 3 wall hanging space for TV hanging on the wall is very tight, the thickness of most TVs on the market plus ordinary racks can not meet the existing installation conditions, similar to Dafa ultra-thin TV at every turn tens of thousands, shy in the bag Just to give up ... that is to say, staying in a new house did not buy TV for several months.
Millet TV 3 wall-mounted later released the millet TV 3 55 inch let the landlord shine, its thickest place is only 34.9mm, the price can accept, almost become the only choice.
Determined the limit of the TV, and turned over the richest man to find a slim TV rack, only 9MM away from the wall, left and right adjustable to adapt to most of the TV.
Millet TV 3 wall bracket
Thus, the sum of the thickness of the TV and the rack is theoretically only 4.39cm, and the distance between the curtain and the wall is less than 10cm, and a margin of at least 5cm should be sufficient.
Considering that the surface of the TV wall has a wood base layer and a beautiful rock board, the thickness is about 3cm, and the expansion screw that comes with the rack is not long enough. For safety reasons, the filigree 10100 nylon expansion bolt is purchased separately. The reference object is an ordinary one. Gel pen, feel it.
Millet TV 3 Wall Accessories
Soon after the arrival of the TV, the first millet TV 3 sun drying.
After unboxing, first power up to see if the screen is normal, and then let go of the delivery buddy after no problem. The Soundbar below is the speaker and the TV host, which means that the screen is just a screen and cannot work alone.
Millet's instructions are simple and intuitive, at a glance.
TV accessories family portrait, comes with a screwdriver, only the MI Port line and fixed rack screws are needed.
Tucao look pitted MI Port line, responsible for audio and video signal transmission and power supply, probably HDMI line and host power supply line fit.
Take the MI Port line and the regular HDMI cable to make a comparison.
The advantage of the Bluetooth remote control is that it does not need to be operated on the TV. The disadvantage is that the set-top box remote control cannot learn the switch of the TV and the volume adjustment function.
The TV stand in the shape of a tree shrew, after eating the wall, eat gray, but still use it for testing.
A person installed stent, XX heart but XX does not say. The shape of the back of the TV is very beautiful, but the egg is.
The thinnest point is less than 1cm, and the thickest point is only 34.9mm. It is not as good as Dafa, but it is quite shocking when viewed from the side. The design of cooling holes has been improved and it is not easy to pick up ash compared to the old millet TVs.
The MI Port line is connected to the screen (in fact, there is only one MI Port interface on the back of the screen).
The other end receives Xiaomi TV host.
There is no space on the cabinet. The TV is placed on the ground first, and you can plug in the mobile hard disk to experience it.
The older sisters are inconvenient to leave the country. The original Blu-ray original image can be played directly. Everything is normal and the rack is still on the way.
Millet TV 3 Wall Mounting ProcessPedestrians arrived the next day, the family portrait, with a horizontal bubble and a variety of screws.
Contrast with coins, the pylon thickness is good, very strong.
Tie into the four rack screw holes behind the TV, two of which are recessed.
It is necessary to use a spacer to level the recesses for even stress.
The vertical bar is fixed with 4 screws and locked.
Then install the cross bar and make a gesture to measure the height of the TV installation.
Look at the thickness of the hanger + TV on the side.
After confirming the position, the wall was opened and a hanger bar was installed. One of the holes interfered with the embedded HDMI cable. In the end, only three expansion bolts were used. However, it does not matter that the filigree strength of the 10100 is sufficient.
Checking whether it is horizontal is not bad.
The TV hangs up and looks at the effect. I thought this would be the end of the matter, but the TV center and the center of the original 5.1 audio were crowded together and couldn't stand it.
Temporarily decided to put the TV host on the wall, consider making a decision to hang on the top of the screen, you can use the screen and wall space to block the main plug on the host, imagine the following diagram.
After determining the plan, the TV host is placed on a flat surface and the distance from the mounting hole to the wall is measured.
In the richest man found this L-shaped connector, the right size, and adjustable slot design allows a certain amount of error.
The arrival of the connector, ignoring the right two, is not an option.
Pull out two plastic washers, right when the spring washers protect the paint surface of the host.
Make sure that the main unit and the bracket are on the same plane, tightened with screws, and the advantages of adjustable slots appear.
The other side is the same approach.

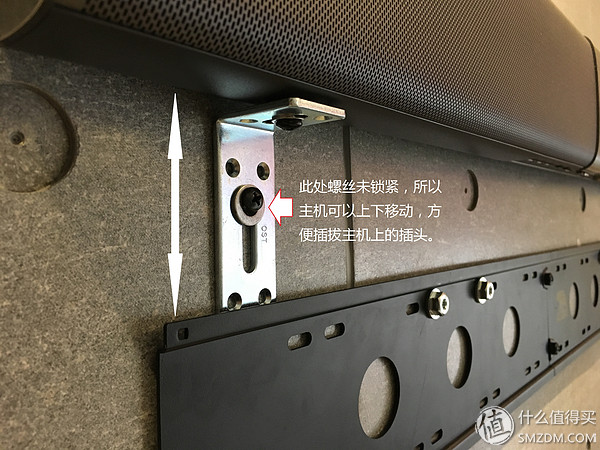

After drawing the installation height, punch holes, fix but not completely lock.
The whole host can be moved up and down so that the plug can be plugged in and out without removing the television.
After the screen hangs, the unsightly plugs and cables on the host's butt are perfectly hidden.
Millet TV 3 wall mounting resultsAnd the final screen distance from the wall is only 4.5cm in line with expectations.
After verifying the results, the curtain fell and there were three centimeters from the TV. It was very successful!
It took some time to move the huge power amplifier into the TV cabinet, refreshing many!
Some people say that the Soundbar hangs on it and looks very awkward. The landlord is not used to all kinds of things at first, but after a long time it will ignore it.
Come here, goodbye!
