The advantage of the CSMA/CA-based MAC protocol is that it is simple and robust. It is suitable for distributed networks. Each node does not need to maintain and dynamically update the status information of neighboring neighbors. It can decide when to access the channel, as long as the upper layer has The data needs to be transmitted, and the MAC layer will compete for the channel, so the application of the protocol is quite extensive. The development of embedded technology also provides a good technical support for the implementation of the MAC protocol. This paper builds an embedded development platform based on the combination of ARM and FPGA, and designs and implements the MAC protocol based on CSMA/CA. Since ARM and FPGA are reconfigurable devices themselves, and some protocol parameters in FPGA are set by ARM, the modification of ARM code can realize the adjustment of protocol functions in FPGA, which is convenient and fast, and no need to regenerate bit files. Download, which is beneficial to the reconfigurable implementation of the MAC protocol.
1 Protocol function description1.1 Message Structure

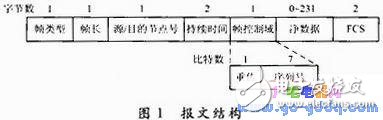

This design implements the basic access mode of the CSMA/CA-based MAC protocol. The communication between nodes is only the data frame (DATA) and the acknowledgement frame (ACK). Figure 1 shows the message structure where ACK has no net data portion. Since the wireless communication of one-hop range is considered, there is no relay node, etc., so only the source node number and the destination node number.
1.2 Network Design
The MAC protocol designed in this paper not only satisfies the mechanism of detecting the busy channel of the basic physical carrier sensing and virtual carrier sensing, but also includes the interframe space, random backoff, response confirmation and retransmission mechanism.
A node that has data to send will first listen to the medium. If it is busy, it will continue to wait. If the idle time exceeds or equals DIFS or EIFS, it will enter the backoff process. During the execution of the backoff process, the node randomly generates a backoff time to set the backoff timer while continuing to monitor the medium. If the idle time reaches a slot time, the backoff timer subtracts a slot time, if during the medium To become busy, the backoff process will hang until the medium idle time reaches DIFS or EIFS again and then continues the backoff process. When the backoff timer becomes 0, the node is allowed to start transmitting data, and the timeout retransmission mechanism is also started. If the desired ACK is not received within the specified time, the data frame is retransmitted, and the node retransmits. If the number of times exceeds the retransmission threshold, the data frame will be discarded, or the maximum allowed transmission time of the data frame will be exceeded, and the data frame will be discarded. When the node receives the ACK, it will start to prepare for the next data transmission.
The receiving node receives the data frame that is correct and is sent to the local node and will immediately reply to the source node ACK. If the node does not receive the correct data frame, EIFS will be used; if the correct data frame is received, but not to the local node, the node will resolve the duration, update the NAV, and treat the channel as occupied.
1.3 Functional division
This design makes full use of ARM's flexible and convenient advantages, and is used to implement the management of random backoff algorithms and protocol parameters, such as the number of retransmissions and the setting of interframe space. The random backoff algorithm uses the i-th backoff to randomly select a value in 2i time slots as the value that the node needs to back off. The setting of the protocol parameters is done by ARM, mainly considering that the FPGA is not conducive to the modification of the parameters, which can also enhance the reconfigurability of the protocol. The FPGA is used to manage the transmission and reception control of MAC frames with its excellent real-time signal processing advantages.
