Foreword:

Seeing SMZDM soliciting home theater submissions, I was impulsive and prepared to quickly share my own assembly process and the advantages and disadvantages and shortcomings to be improved. This article only talks about its own construction process, is not the main drying equipment (all are bargains), does not talk about the parameter performance of the equipment, but just to explain their own reasons for choosing the equipment and the direction of consideration, for everyone to refer to.

ready:

Previously bought a few houses, are second-hand housing has been renovated, simple to get involved in the stay, basically have no room to play; in 2014, got this house now live, the first new house in life, rough How do you want to engage in (in the economic tolerance range).

Before the renovation started, it was determined that the projector must be installed. When discussing drawings with the decoration company, this part was added as a key work. The decoration company did not engage in projection wiring decoration, etc. I suggest that I go to Zhujiang Road to find a video company to do the design, but I just want to spend a little money to engage in one, extra design expenses and other expenses can not be accepted. In the end, it designed itself to let the decoration company help. Everyone remembers that if your curtain and projector are hung on a suspended ceiling, you must tell the decoration company about the weight of the curtain and the projector and ask the decoration company to reinforce the ceiling.

Room type:

Living room: It's about a four-by-four-meter square. If you sit on a sofa, there is a restaurant of the same size on the left and the balcony on the right.
In theory, I should hang the curtain between the living room and the dining room or between the living room and the balcony so that the front speakers are located on the short side of the square. Considering that I am mainly a family, it is only a place to watch movies. Or, in the usual way, put the curtain on the side of the TV and facing the sofa.

Traces:

The most important thing to do with the decoration company is the alignment of basic hydropower construction. The hidden project must be done well. If it fails to do so, it cannot be changed in the future.
There are four main types of lines:

1, HDMI cable

The HDMI line is constantly upgraded, 1.3/1.4/2.0 or something, I do not study this, but frequent upgrades make me worry that my wire will be outdated in the near future, so the first consideration is the replaceable design of the HDMI cable.

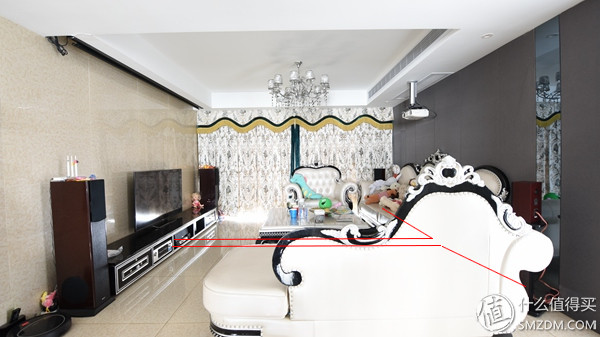

My HDMI cable traces are as follows:

Red line: A thick pipe from the top to the bottom of the TV background wall (how thick I forgot, it may be a 10-point pipe, decoration for 2 years, I did not expect to write this article at the time) through the curtain box and The bottom of the wall.
Yellow line: The lamp slot in the curtain box is multiplexed as the cable channel of the HDMI cable so that the HDMI cable TV side goes to the sofa side.
Blue Line: The ceiling of the central air conditioner opens a hole from the side of the curtain box, allowing the HDMI cable to enter the ceiling, and finally punches through the center hole.

After testing, the wire rods can be freely twitched in my pipeline. Therefore, I didn't pre-embed the HDMI cable during the renovation. After the decoration, I re-threaded it.

2, audio line

My audio cable layout is as follows:

With the idea of ​​multiple ghosts in multiple incense burners (in fact, I wanted to save money), I decided not to install an audio cable panel and directly connect the amplifier directly to the audio. The power amplifier and playback equipment are all placed in front of the TV cabinet so that the front and center speakers do not need to be buried, and only the buried wires are needed.

This wiring is simple, directly from the middle of the TV side to the bottom of the sofa to the middle of the sofa side, and respectively from the 2 side outlet.

3, network cable

I only need a Gigabit intranet, and use an ordinary Super Category 5 network cable. All 8 cables are connected to meet the Gigabit demand. I put two network cables from the weak box to the TV cabinet.

4, power line

I thought about installing a socket next to the projector too hard to see, I chose the projector cut the power cord directly into the home network, so usually there is no plug can be unplugged, can only be a full blue light power, Virgo I It is unbearable. The solution is to go alone for the projector and the screen. There is a power supply in the power box that controls the projector and the screen separately. Please praise yourself. The screen must be left in the socket, first look at the side of the power line of your own screen, and install a socket in the corresponding position, remember. My screen can use the remote control to control the screen up and down, I did not install the curtain control panel, if some curtains need to install the wall control panel, please be sure to do in advance.

Selection:

After the cabling is completed, the selection begins and we enter our favorite buying, buying and buying phase.
1. Projector Selection <br>Depending on the distance from the projector to the screen, and the size you want to cast, you can determine what projectors you need to buy. I bought the Epson EH-TW5200, what is worth buying regular customers.
I couldn't find the Yaiya account for a while, but SMZDM recommended it many times, and there was a lot of drying orders. I didn't bother to find my order.


Select it, there are two factors, 1, my eyes myopia, afraid of the rainbow eyes, selected 3LCD. 2, cheap, when the National Bank nearly 10,000, Haitao about 5000. At that time, it was also recommended by Zhang Aunt. When Amoy returned 5200 years ago, Nanjing Customs accepted 500 tariffs without hesitation, or paid 20 Yuan to pay the tax bill for you. He took the tax bill himself and went to the Customs to pay customs duties. .

2, projector hanger purchase
TW5200 area is not small, three fixed screw holes form an inclined triangle, many hangers can not be used, when selecting the hanger was really a waste of effort, and finally chose the "beauty GPCM-C300" hanger, even selected It still has to be fixed through the expansion board.

Not the official flagship store to buy, on a Taobao search link


3, HDMI line selection <br> Knowledge of a forum, HDMI cable length of 10 meters, more than 10 meters can not guarantee the quality.
I measured the length of the wiring in my home, 12 meters, a little bit longer. Based on some unwarranted concerns, I was prepared to buy a little more expensive line. (In fact, my design is HDMI can be changed, when you should buy a cheaper, can use it, can not be used to change). Central Asia began to open the Bor A series line, 12 meters, did not know how to think about it, but also started yellow knife 12 meters HDMI one.
Contrast, two lines can be used, open Bor super hard, expensive, yellow knife softer, cheaper, since all bought, when I was threading, or wear a little more open Bor, yellow knife as a backup.

Yellow knife line I can not find where to buy, not on the link.

Here's a hint of friendship:
If your decoration is a non-replaceable design, it is recommended that you first test the equipment after you have purchased the wire. If there is a problem, you can change the equipment or wire to correct it. Otherwise, once the wire is buried well, it is found that the wire cannot output the image. I regret it.

4, audio line selection type <br> According to a forum, Taobao start Huamin Huazheng brand ETB line, 4 square 2504 core for the front and center, 2.5 square 2322 core for the surround. I feel very satisfied that this line is really good after I arrived.


5, curtain selection <br>The material and structure of the curtain too much, I do not particularly understand, I do not want to go to Baidu copy the search results, and ultimately I chose the white glass fiber material of the electric curtain, the brand is my study for a long time The choice of Yi Li, I personally take the habit of things, projection look uncomfortable Shu, projector is one aspect, the curtain is also very important, can not save money. Optional 120-inch electric curtain. Debon logistics since the mention, the curtain length of 1 meter 3, too long, the car does not fit into the plug, a little bit, the last seventy to eighty yuan so that Debon logistics help me downstairs, but not add money Building, and can only go upstairs to their own resistance, but the elevator can not enter the 1 meter 3 curtain, and finally took the stairs to the 17th floor, thanks to the curtain is not heavy.

Incidentally bought curtain hanger

Are the official flagship store to start.

Select reason:
1. It is said that the focus point of the hand-curtain screen is concentrated and the curtain is easily deformed
2. I am mainly a family. I still want to put TV. Usually the screen must be closed. The frame curtain is not suitable for me.

6, power amplifier selection <br>My need is 5.1 amplifier, the other is not, I think the film is mainly to see the plot, my budget does not need to consider too much, roughly selected, Jingdong purchased Tianlong X1010


7, audio selection <br>water is too deep, too deep, too deep (say three times). Look at the dazzling, online look, the physical store to see, the budget rose and then rise, more and more like a bottomless hole, the last angry, first buy the cheapest, anyway, after the change is also convenient. Jingdong started Tianlong SYS150. Taking into account the feelings of the elderly downstairs, I did not buy a subwoofer.


8, around the tripod <br> audio prices are this, and how can buy tripod? Those who Taobao cheaper to buy, although the surrounding should be a little higher, but the tripod to get so high is really ugly.

Tripod is full of Taobao, not on the link.

9, TV cabinet purchase <br>Why here to write TV cabinet to buy it? Because my home is slightly taller and the height of the 120-inch curtain is not enough, the height of the floor under the curtain is only 35-40cm. Then I have a lot of equipment to put into the TV cabinet. This requires that the TV cabinet is extremely long and short. The size I set was 1 meter 3 long (as long as the curtain), 30cm high. This size I traveled to Nanjing and Suzhou, the size of the furniture city can not find, and finally to find a custom furniture factory, customized to tell the manufacturer of the size of my equipment, leaving a good space, so as not to put in.

10, TV purchase <br>Why do you want to write TV to buy it? Because I have both televisions and screens, and my TV is not ready to go to the wall (I am extremely unfeeling about any equipment on the wall, so my surround sound is not on the wall), the TV must not affect my curtain freely. Before the renovation, I did not consider this issue. When the curtains were well packed, I measured the distance between the curtain and the wall. Then I found that the TV was not selected. Most of the TVs were viewed from the side, and the front panel was in the front half of the bracket. , so that the television is more forward and will hinder the decline of the curtain. In the end, only SONY can be selected. Only the panel is located in the back half of the bracket. The entire TV is more against the wall. The actual screen is just down the TV panel.

I couldn't find a home appliance company to buy a TV. Anyway, it is SONY 55W800B, which is also worth buying regular customers.

11, the purchase of the sofa <br> I want to buy Chivas, like the whole person trapped inside to watch the movie, was a veto by the married women to decorate the style inconsistent. I bought this sofa now and I think it's too hard. Suzhou physical store to buy.

12, the purchase of curtains <br><br><br><br><br>The side of the living room is a balcony, a shading curtain is a must, curtains choose your favorite, and then require businesses to add a layer of blackout cloth, the projector does not require a black environment , as long as there is no light. If there is no strong ambient light on the other side, there will be no shelter, and the shelter will not resemble a home. The married woman will veto again.

Nanjing store bought

13: The purchase of lamps <br> Crystal chandelier pits me, just blocking the projector's light path, the screen has a few black blocks, no way, remove a little crystal pendant it. The figure below is easy to see.


Network topology:

I don't have NAS, no PS, no XBOX, and I won't be buying later. The equipment I am going to use is only one small ITX host, a 1 penny exchanged Lynx box, and a radio and TV HD set-top box with HDMI.

The network is simple

Small host:

The small host has a 2T/3T/4T hard drive in it. I watch the frequency of 1-2 movies every week. Only the independent host is suitable for me. When I look at it, I just like to put in a cheap SSD.趁 趁 免费 免费 免费 免费 免费 免费 10 10 10 10 10 10 WIN WIN WIN WIN 10 WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN WIN

Briefly describe the configuration:

CPU: Celeron G1610
Memory: 4G
Motherboard: MSI B75IA-E33
Power supply: 300W
Chassis: JONSBO V6
Hard Disk: 64G SSD+2T+3T+4T

Motherboard comes with HDMI, use the CPU software solution, the player software is only a potplayer, play 40-50G Blu-ray original disk, the CPU takes up about 50%, satisfied, after the performance is insufficient, buy an I3 or I5 CPU can be replaced .

Buying a squirrel extra, as a keyboard mouse, is very convenient.

device installation:

1, first install the curtain because of the curtain box, limiting the position of the curtain, be sure to install the curtain, and then determine the position of the projector according to the position of the curtain.
In order to install the curtain, I bought the curtain bracket, but because the curtain box was installed first, the bracket could not be put on the wall. Finally, the bracket was modified and some parts were sawed off. The bracket was then mounted directly on the suspended ceiling.

2. After the projector is installed, calculate the location of the projector by using the official calculation tool. Try to place the projector in this position. Then try the investment. Check whether the theory is consistent with the actual situation. If it is inconsistent, find out the problem. If it is consistent, repeat the ceiling. Mark the location and ask the decoration company to make a round hole and fix the projector hanger base to the ceiling. Then the rest of the work is done by yourself. To install the boom, install the floor, install the projector, and adjust the seat, be sure to have patience.

3, the center speaker my center speaker is not placed on the TV cabinet, because the floor is not high, put on the TV cabinet my curtain will not put in the end. I decided to put my center speaker in the TV cabinet, but my TV cabinet was too short, the sound of the center speaker was completely blocked by the coffee table, and finally I bought a few speakers shockproof sponge pad, put the middle speaker pad An elevation angle of about 15 degrees is used, so that the sound of the center speaker is directly on the sofa's face, which avoids the resonance of the audio TV cabinet. At the same time, a small area under the sound is just below the set-top box. ! See the following figure for details.

Actual equipment appearance effect:

1, the appearance of the projector

2, the appearance of the curtain

Actual viewing effect:

I think I still watch the most fun games

Inadequacies:

5200 projector no lens shift, in order to align the curtain, I took the ruler to measure at home, according to the official software, and then use the box and other items to carry the projector to a predetermined location for trial, toss for several days, the final projection The screen still can't match the curtain completely. It's not the left side, it's the right side, the top is not, and the bottom is not. Next time I change the projector again, I must replace it with a lens shift.

Crystal chandelier is still a bit block light, I would like to shrink the pendant online, the daughter-in-law refused to say that it is difficult to see the re-contracted, the current top of the curtain will have a few black spots, can only selectively ignore.

The customization of the TV cabinet is to find the design of XX home delivery. Who knows XX home delivery sent the drawing to the furniture factory and sent it to the wrong one. As a result, the wiring trough at the bottom of the TV cabinet I designed was not reserved. Currently, the TV cabinet can only be reserved. A short distance from the wall, leaving space for the wire, if you can make according to design drawings, my TV cabinet can be placed against the wall. In addition, each partition of the TV cabinet reserved forgotten the small host, the height is slightly higher, can not be put from the front, and finally is to open the top panel from the top into, which led to me later if you increase or replace the hard disk of a larger capacity At that time, you must remove the TV and remove the top panel of the TV cabinet to remove the host and fail. Fortunately, in one or two years, you will not be able to open a main box.

When I had finished decorating the house, I opened the curtain for 24 hours. I had a daughter-in-law to a new house in one day. My daughter saw the curtain very happy (it was a big blank sheet) and I didn't know where she found it. A whiteboard pen began to draw on the curtain. At that time, after hearing the news, my heart was cool and exhausted. After asking the flagship store customer service, I told the customer the curtain type and material. The customer service told us that the alcohol cotton ball could be removed. I quickly Rub, found that the effect of rubbing is not good, it does not continue, wait for a period of time, etc. After the traces of the whiteboard pen dries out, then wipe with an alcohol swab to remove very thoroughly. At the time, I thought that the curtain would be changed once it was useless.
